Introduction
Choosing the right lead protection for cartridge heaters is essential. Have you considered stainless steel braid?
In this article, we explore when to choose stainless steel braid for cartridge heaters. You'll learn its benefits and how it ensures efficient performance.
At Reheatek, we offer durable, flexible cartridge heaters. Learn more about our products here.
Why Choose Stainless Steel Braid for Cartridge Heaters?

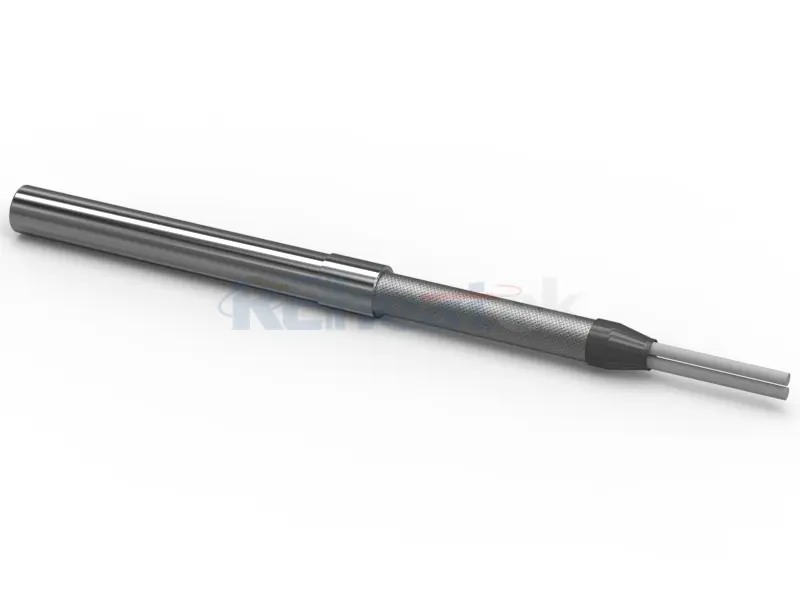

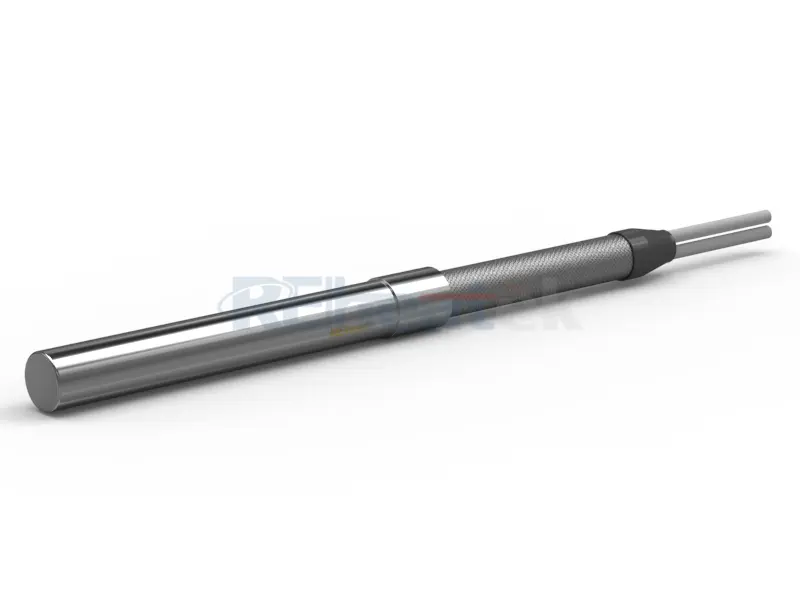

What is Stainless Steel Braid?
Stainless steel braid is a protective outer layer made from woven stainless steel wires. It is designed to protect the leads of cartridge heaters from mechanical stress, abrasion, and harsh environmental factors. The strength and flexibility of the stainless steel braid provide enhanced protection compared to other materials like silicone or fiberglass. This makes it particularly suitable for high-performance applications where both durability and flexibility are essential.
Stainless steel braid is commonly used in applications such as packaging machines, extruders, and food processing equipment. It helps safeguard the leads while maintaining the heater's flexibility and ability to operate in confined spaces or areas requiring frequent movement.
Benefits of Stainless Steel Braid
● Abrasion Resistance: Stainless steel braid shields the heater leads from wear and tear caused by physical contact with rough surfaces or moving components.
● Flexibility: Its ability to bend and move without compromising strength makes it ideal for applications where space is tight or movement is frequent.
● Durability: Stainless steel is highly resistant to corrosion, temperature extremes, and mechanical stress, ensuring long-lasting performance.
Applications Where Stainless Steel Braid is Ideal
Flexible Applications
In applications where heater leads need to accommodate movement or tight spaces, stainless steel braid offers superior flexibility without sacrificing protection. For instance, in automated systems like packaging machines or robotics, where leads must frequently bend, stainless steel braid ensures the heater operates efficiently while preventing damage to the leads.
For example, when used in extruders, cartridge heaters with stainless steel braid offer robust protection while maintaining flexibility for frequent adjustments in processing speed or material type. This flexibility is crucial to ensure that the heater delivers consistent and reliable performance throughout the production process.
High Abrasion Environments
Stainless steel braid is highly effective in protecting heater leads from abrasion. In manufacturing processes that involve heavy machinery, materials that cause wear, or environments with rough surfaces, the stainless steel braid provides the necessary durability to withstand these conditions.
In industries like automotive manufacturing or plastic extrusion, where materials are under constant movement and pressure, stainless steel braid ensures that the heater's leads are safe from potential damage, thus maintaining heater functionality and preventing downtime due to wear-related issues.
Extreme Temperature Conditions
For applications exposed to extreme temperatures—whether high or low—stainless steel braid ensures that the leads remain intact and perform reliably. It can withstand the thermal stresses that often occur in industries like aerospace, plastic molding, or medical equipment manufacturing, where precise temperature control is critical.
When used with cartridge heaters in high-heat environments, stainless steel braid protects the leads from thermal degradation, ensuring that the heater can maintain its performance and extend the operational lifespan of both the heater and its protective sheath.
Application | Key Benefits | Example Use Cases |
Flexible Applications | Flexibility and durability in tight spaces | Packaging machines, robotic arms, conveyors |
High Abrasion Environments | Protects leads from mechanical wear and damage | Extruders, material processing machinery |
Extreme Temperature Conditions | Can withstand both high and low temperatures | Aerospace, plastic molding, die casting |
Factors to Consider When Choosing Stainless Steel Braid
Flexibility vs. Strength
Stainless steel braid offers a balance between flexibility and strength, making it ideal for applications that require both movement and protection. When choosing whether to use stainless steel braid for cartridge heaters, consider the level of flexibility needed in your application. For systems where the leads must bend or move frequently, stainless steel braid provides the durability to prevent failure while allowing the necessary flexibility.
Reheatek cartridge heaters are designed to deliver concentrated heat in limited spaces, and their use of stainless steel braid as a protective cover enhances their ability to handle high-stress, high-flexibility applications. This balance of flexibility and protection ensures both performance and longevity in tough environments.
Environmental Factors
The type of environment in which the cartridge heater operates plays a crucial role in deciding whether stainless steel braid is the right choice. If the application involves exposure to chemicals, harsh environmental conditions, or mechanical wear, stainless steel braid offers superior protection.
In food processing or medical equipment applications, where hygiene and reliability are critical, the durability of stainless steel braid ensures that the heater maintains consistent performance even in extreme conditions. It is also resistant to chemical corrosion, making it a valuable choice for environments where exposure to harsh substances is common.
Installation Space
In many industrial applications, space is limited, making it essential to choose a protective material that provides strong protection without taking up too much room. Stainless steel braid is more compact compared to other bulkier lead protection options like steel hoses, making it ideal for confined spaces or installations where every inch matters.
The cartridge heaters featuring stainless steel braid allow efficient installation even in compact machinery or systems where minimal space is available. Their ability to provide adequate protection in such tight spaces ensures that operational requirements are met without compromising safety or performance.
Condition | Stainless Steel Braid | Steel Hose | Fiberglass |
Application with High Movement | Ideal for flexibility and protection | Limited flexibility, better for static use | Not suitable for high movement |
Environment with High Abrasion | Excellent abrasion resistance | Very good, but less flexible | Poor abrasion resistance |
Exposure to High/Low Temperatures | Excellent | Excellent | Excellent |
Space Constraints | Compact, ideal for tight spaces | Bulky, requires more space | Not suitable for tight spaces |
Comparison with Other Lead Protection Options
Stainless Steel Braid vs. Steel Hose
Both stainless steel braid and steel hose provide robust protection for cartridge heater leads, but they differ significantly in terms of flexibility. Stainless steel braid offers greater flexibility, making it ideal for applications with frequent movement or tight spaces. Steel hoses, while stronger in terms of durability, are less flexible and can take up more space.
For applications requiring dynamic movement, such as robotics or flexible manufacturing systems, stainless steel braid is often the preferred option due to its ability to bend and move freely without sacrificing protection.
Stainless Steel Braid vs. Fiberglass
Fiberglass insulation is commonly used for heat resistance but lacks the mechanical strength of stainless steel braid. Fiberglass provides excellent heat insulation, but it is vulnerable to wear and tear in applications where the heater leads are subject to physical stress or movement.
When durability and flexibility are equally important, stainless steel braid outperforms fiberglass, offering the best of both worlds for cartridge heater leads exposed to harsh environments.
Stainless Steel Braid vs. Silicone
Silicone insulation is favored for its heat resistance but doesn’t provide the same level of mechanical protection as stainless steel braid. While silicone works well in environments requiring heat resistance, it is not as effective in protecting the leads from abrasion or physical stress.
In applications where both heat resistance and mechanical protection are needed, stainless steel braid is the superior choice.
Feature | Stainless Steel Braid | Steel Hose | Fiberglass | Silicone |
Flexibility | High | Low | Medium | High |
Abrasion Resistance | Excellent | Good | Low | Low |
Heat Resistance | High | High | Excellent | Excellent |
Durability | High | Very High | Moderate | Moderate |
Best for High Movement | Yes | No | No | Yes |
Best for Abrasive Environments | Yes | Yes | No | No |
How to Install Stainless Steel Braid for Cartridge Heaters
Proper Placement and Routing
To ensure optimal protection, stainless steel braid must be routed correctly during installation. The braid should be carefully placed along the full length of the heater leads, ensuring it covers all exposed areas. It's essential that the braid is positioned to avoid excess movement, especially in areas where the lead may bend or flex frequently. Improper placement can lead to chafing or abrasion, which can cause damage over time. Ensuring the braid is properly secured will minimize the chances of wear, helping the heater maintain its efficiency and reliability.
For installations in tight spaces or systems with frequent movements, it's crucial to ensure that the braid doesn't interfere with other components or become overstressed. Adequate routing and secure installation are key to achieving long-lasting protection for both the cartridge heater and the surrounding environment.
Maintenance and Inspection
Stainless steel braid is durable, but regular maintenance and inspections are necessary to keep it performing optimally. Over time, factors like friction, environmental exposure, and constant movement may cause minor damage or wear to the braid. Inspections should focus on signs of chafing, corrosion, or breakage in the braid, especially in high-movement applications like packaging machines or conveyors.
Routine maintenance involves checking the condition of the braid and ensuring that the leads are still fully covered and properly protected. In high-stress environments, additional inspections may be needed to catch early signs of wear before they cause issues that could lead to heater failure or safety concerns.
By implementing regular inspection schedules and proper maintenance, you can extend the operational life of both the cartridge heater and its protective sheath, ensuring uninterrupted performance and reducing the risk of costly repairs.
Conclusion
Stainless steel braid is the ideal choice for cartridge heaters when flexibility, durability, and abrasion resistance are critical. It excels in industries like plastic molding, aerospace, food processing, and automotive manufacturing, where performance and protection are essential. By selecting stainless steel braid, you ensure greater efficiency, protection, and extended heater life in harsh industrial environments.
At Reheatek, we offer cartridge heaters designed for durability and optimal performance in demanding applications.
FAQ
Q: Why should I choose stainless steel braid for cartridge heaters?
A: Stainless steel braid provides superior flexibility, durability, and abrasion resistance, making it ideal for demanding industrial environments.
Q: In which industries is stainless steel braid best used for cartridge heaters?
A: Stainless steel braid is ideal for industries like plastic molding, aerospace, food processing, and automotive manufacturing, where high performance and protection are crucial.
Q: How does stainless steel braid protect cartridge heater leads?
A: Stainless steel braid protects heater leads from mechanical stress, abrasion, and extreme temperatures, ensuring longer lifespan and reliable performance.
Q: What are the advantages of stainless steel braid over other materials for cartridge heaters?
A: Stainless steel braid offers better flexibility, abrasion resistance, and durability compared to other materials like fiberglass or silicone, making it more suitable for high-stress applications.
