Immersion heaters are essential devices used to heat water or other fluids by directly immersing a heating element into the substance. They are commonly found in domestic hot water cylinders, industrial tanks, and various applications requiring controlled heating. Understanding how immersion heaters work, their components, types, and applications can help users optimize their use and maintenance.
What Is an Immersion Heater?
An immersion heater is an electric heating element that is inserted directly into a liquid, typically water, to heat it. The heating element is usually made of a metal coil or rod and is completely submerged in the liquid. When electricity passes through the heating element, it generates heat through resistance, which is then transferred to the surrounding liquid, raising its temperature.
How Do Immersion Heaters Work?
Immersion heaters operate through a straightforward but highly effective principle of direct heating. They are designed to heat liquids, such as water, oil, and chemicals, by submerging a resistance heating element directly into the fluid. The simplicity and efficiency of this design have made immersion heaters a popular choice for a wide range of industrial and domestic applications. Let's take a closer look at how immersion heaters work, step by step, from heating element activation to temperature regulation.
1. Heating Element Activation
At the core of any immersion heater is its heating element, typically made from materials like copper, stainless steel, or nichrome. These metals are chosen for their high resistance to electric current, allowing them to generate significant heat when an electrical current passes through them.
When the immersion heater is connected to the mains electricity, electricity flows through the heating element, causing it to resist the flow of the current. This resistance generates heat, which then radiates out from the heating element and directly into the surrounding liquid. The heat generated is efficiently transferred to the fluid, raising its temperature. This process is highly effective because the heating element is in direct contact with the liquid, ensuring efficient heat transfer.
2. Heat Transfer to the Liquid
The most important feature of immersion heaters is their direct contact with the liquid. Unlike other heating methods that use indirect heat transfer (e.g., using a heating plate or external heat source), immersion heaters work by physically placing the heating element inside the liquid. This direct heating ensures that heat is distributed quickly and uniformly throughout the liquid.
When the heating element heats up, it transfers its heat directly to the surrounding fluid. The liquid molecules absorb the heat energy, causing them to move faster, which results in an increase in temperature. The heat is distributed evenly, making immersion heaters ideal for applications where precise and uniform temperature control is critical.
3. Thermostat Control for Precision
Most immersion heaters are equipped with a thermostat or temperature control system that continuously monitors the temperature of the liquid. The thermostat ensures that the heater only operates when needed, providing precise temperature control.
When the liquid reaches the preset temperature, the thermostat will automatically cut off the power to the heating element, preventing overheating and conserving energy. This feature is crucial in both domestic and industrial settings, where it is important to maintain a stable temperature without wasting power.
If the temperature drops below the desired level, the thermostat will turn the heater back on, ensuring that the liquid stays at the required temperature. This on/off cycling helps maintain the temperature within a narrow range, enhancing both energy efficiency and operational safety.
Types of Immersion Heaters
1. Direct Immersion Heaters
These heaters have their heating elements directly immersed in the liquid. They are commonly used in domestic hot water cylinders and industrial applications where direct contact with the liquid is necessary for efficient heating.
2. Indirect Immersion Heaters
In these systems, the heating element is enclosed within a sheath and does not come into direct contact with the liquid. Heat is transferred to the liquid through the sheath by conduction. This design is often used to prevent contamination or corrosion of the heating element.
These heaters are designed to be suspended over the side of a tank, with the heating element immersed in the liquid. They are ideal for applications where the tank cannot be drained or where frequent removal of the heater is necessary for maintenance.

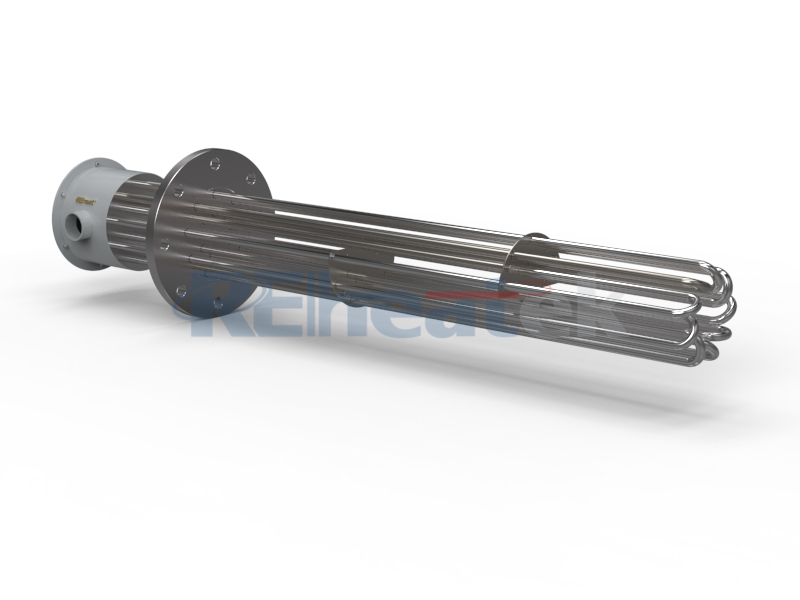

4. Flanged Immersion Heaters
Flanged immersion heaters are mounted onto a tank or vessel using a flange connection. This type allows for higher power ratings and is suitable for industrial applications requiring significant heat input.
Applications of Immersion Heaters
1. Domestic Hot Water Systems
In homes, immersion heaters are often used in hot water cylinders to provide a reliable source of hot water. They serve as a backup to gas or oil boilers and are particularly useful in areas without access to gas supply.
2. Industrial Heating
Industries utilize immersion heaters to heat various fluids, including oils, chemicals, and water in large tanks. They are essential in processes such as chemical manufacturing, food processing, and petroleum refining.
3. Freeze Protection
Immersion heaters are used to prevent liquids from freezing in outdoor tanks or pipes, especially in colder climates. By maintaining a minimum temperature, they ensure the fluid remains in a usable state.
4. Laboratory and Scientific Applications
In laboratories, immersion heaters are employed to maintain precise temperatures for experiments and processes. They are used in water baths, sterilizers, and other equipment requiring controlled heating.
Maintenance and Troubleshooting
● Regular Cleaning: Periodically clean the heating element to remove scale buildup, which can impair performance.
● Check Thermostat Settings: Ensure the thermostat is set to the desired temperature and is functioning correctly.
● Inspect Electrical Connections: Verify that all electrical connections are secure and free from corrosion.
● Professional Servicing: For persistent issues or complex problems, consult a qualified technician to service the immersion heater.
Conclusion
Immersion heaters are vital components in various heating applications, offering efficient and reliable heating solutions. By understanding their operation, types, and maintenance requirements, users can ensure optimal performance and longevity of their immersion heaters. Whether for domestic hot water, industrial processes, or specialized applications, immersion heaters provide a versatile and effective means of heating liquids.
