In industrial settings, effective heating systems are essential for a wide range of applications, from plastic processing to metalworking. Among the most efficient and reliable heating solutions are ceramic band heaters, which are used to apply heat to cylindrical surfaces like extruder barrels, pipes, molds, and other industrial equipment. These heaters offer numerous benefits over traditional heating methods, making them an increasingly popular choice in modern production processes.
Ceramic band heaters combine advanced material science with precision engineering, offering superior thermal efficiency, durability, and ease of use. This article will provide an in-depth understanding of the design, functionality, and advantages of ceramic band heaters, helping businesses make informed decisions when selecting heating solutions for their production lines.
What is a Ceramic Band Heater?

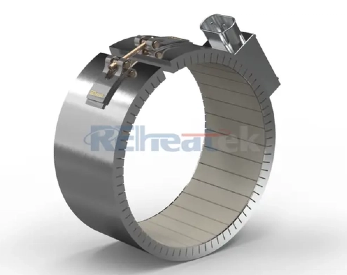

A ceramic band heater is a type of industrial heater designed to wrap around cylindrical surfaces, such as the barrels of extruders or the molds in plastic injection molding processes. These heaters are made using high-quality ceramic materials that provide excellent insulation properties, ensuring minimal heat loss while efficiently transferring heat to the surface. The heating element inside the band heater is typically made from high-resistance wire, such as nickel-chromium or iron-chromium alloys, which generates heat when electricity is passed through it.
The main function of a ceramic band heater is to provide uniform and precise heat to the target surface. This is especially important in processes like extrusion, where maintaining a consistent temperature is crucial for the quality of the final product.
Components of a Ceramic Band Heater
The design of a ceramic band heater is relatively simple, but each component plays an important role in ensuring its functionality and performance. The key components of a ceramic band heater include:
1. Ceramic Insulation
Ceramic insulation is the core feature that differentiates ceramic band heaters from other types of industrial heaters. The ceramic material is highly effective at retaining heat, preventing it from escaping into the surrounding environment. This ensures that the majority of the energy produced by the heater is transferred directly to the surface being heated, making the heater highly energy-efficient.
Additionally, ceramic materials are resistant to extreme temperatures, corrosion, and wear, allowing ceramic band heaters to withstand the demanding conditions typically found in industrial environments.
2. Heating Element
The heating element inside a ceramic band heater is typically made from metal wire that has a high electrical resistance. The wire is wound into a spiral shape and embedded within the ceramic insulation. When electricity flows through the wire, it generates heat due to the resistance of the material. The heating element is designed to provide consistent, even heat distribution along the length of the heater, ensuring that the target surface is heated uniformly.
The heating element’s material is carefully chosen to withstand high temperatures and repeated cycles of heating and cooling, ensuring durability and longevity.
3. Metal Outer Shell
The outer shell of a ceramic band heater is made from a durable metal, typically stainless steel, which acts as a protective covering for the ceramic insulation and heating element. The metal shell provides structural support and helps to secure the heater around the cylindrical surface it is heating. It also ensures that the heater is protected from external damage, such as impacts or abrasions.
The outer shell is often designed to be flexible, allowing the heater to conform to different sizes and shapes of equipment. This flexibility is one of the reasons ceramic band heaters are so versatile in industrial applications.
4. Thermal Protection
Thermal protection is an important feature of ceramic band heaters, ensuring that the heater does not overheat or experience damage due to excessive temperatures. Many ceramic band heaters are equipped with built-in thermal cutoffs or over-temperature protection devices that will automatically shut off the heater if it reaches a preset temperature. This helps to prevent overheating, which could lead to damage to both the heater and the equipment it is heating.
5. Power Connection
The power connection allows the heater to be electrically powered, typically through a set of terminals that connect to the power source. These terminals are usually located at the ends of the ceramic band heater and are designed to handle the electrical load of the heater without overheating or short-circuiting.
How Do Ceramic Band Heaters Work?
The functionality of ceramic band heaters is closely tied to their design and material properties. Here's a step-by-step explanation of how ceramic band heaters work:
Electrical Power Supply: The ceramic band heater is connected to a power source. Electricity flows through the heating element, which is made of high-resistance wire, typically constructed from materials such as nickel-chromium or iron-chromium alloys.
Heat Generation: As the electricity passes through the heating element, the wire’s electrical resistance generates heat. The heat is distributed evenly along the length of the heating element, which is embedded within the ceramic insulation.
Heat Transfer to the Target Surface: The ceramic insulation efficiently retains the generated heat and directs it toward the target surface. Ceramic materials are excellent conductors of heat and help to minimize heat loss to the surrounding environment, ensuring that most of the energy generated by the heater is used to warm the equipment being heated.
Maintaining Consistent Temperature: Once the target surface reaches the desired temperature, the heater continues to regulate the heat output to maintain a consistent temperature. This is crucial in applications such as plastic extrusion or injection molding, where slight temperature variations can affect the quality of the final product.
Thermal Protection: If the temperature exceeds a certain limit, the heater’s thermal protection system will kick in, shutting down the heater to prevent damage. This ensures the safety and longevity of both the heater and the equipment.
Advantages of Ceramic Band Heaters
Ceramic band heaters offer several advantages that make them ideal for industrial applications. These benefits include:
1. Energy Efficiency
One of the most significant advantages of ceramic band heaters is their energy efficiency. Due to the excellent insulating properties of ceramic materials, these heaters retain heat much better than other types of heating elements. The insulation minimizes heat loss, ensuring that more of the energy is transferred to the target surface.
This efficiency reduces energy consumption and operational costs, making ceramic band heaters a cost-effective choice for long-term use in industrial settings.
2. Uniform Heat Distribution
Ceramic band heaters are designed to provide uniform heat distribution across the entire surface area. The heating element is embedded within the ceramic insulation, ensuring that the heat is evenly spread throughout the heater. This consistent heating is particularly important in processes such as plastic extrusion, where uneven heating can lead to defects in the final product.
3. Durability and Longevity
Ceramic band heaters are known for their durability and long lifespan. Ceramic materials are highly resistant to wear, corrosion, and extreme temperatures, which makes ceramic band heaters ideal for harsh industrial environments. They can withstand repeated cycles of heating and cooling without losing their performance.
The outer metal shell also provides additional protection against physical damage, further increasing the longevity of the heater.
4. Fast Heating and Cooling
Due to their efficient design and high thermal conductivity, ceramic band heaters can heat up quickly and maintain stable temperatures with minimal fluctuation. This is particularly beneficial for industries that require rapid heating times, such as plastic processing, food production, and chemical manufacturing.
Additionally, ceramic band heaters cool down just as quickly as they heat up, allowing production lines to be adjusted or stopped with minimal downtime.
5. Customization Options
Ceramic band heaters come in a variety of sizes and designs, making them highly customizable for different industrial applications. Whether you need a heater for a small machine or a large industrial system, ceramic band heaters can be tailored to fit your specific needs. Customization options can include:
Custom sizes and lengths to fit different equipment
Adjustable watt densities to meet specific heating requirements
Temperature controls and protection systems to suit particular applications
6. Improved Safety
Ceramic band heaters are generally safer than traditional heating methods. Their thermal cutoffs and over-temperature protection features ensure that they do not overheat and cause damage to equipment or pose a fire hazard. Additionally, their robust construction and insulating materials minimize the risk of electrical hazards, making them a safer choice for industrial use.
Common Applications of Ceramic Band Heaters
Ceramic band heaters are used in a wide range of industrial applications due to their ability to provide efficient and consistent heat. Some of the most common uses include:
1. Plastic Processing
In industries such as plastic extrusion and injection molding, ceramic band heaters are used to maintain the required temperature for melting and shaping plastic materials. They are especially useful for ensuring even heat distribution along the barrel of an extruder or the mold in an injection molding machine.
2. Food Production
Ceramic band heaters are also used in the food industry for heating, cooking, and sterilizing food products. Their ability to provide uniform and controlled heat makes them ideal for applications where temperature consistency is critical to product quality.
3. Chemical and Pharmaceutical Industries
In the chemical and pharmaceutical industries, ceramic band heaters are used for heating reactors, pipes, and tanks. These heaters are suitable for maintaining the precise temperature required for chemical reactions or product formulation.
4. Metalworking and Forging
Ceramic band heaters are often used in metalworking and forging applications to heat metals before they are shaped or molded. Their resistance to high temperatures and durability make them ideal for use in these harsh environments.
Conclusion
Ceramic band heaters are an essential heating solution for many industrial applications. Their efficient design, durability, and ability to provide uniform heat distribution make them ideal for use in processes like plastic extrusion, food production, and chemical manufacturing. Understanding the design and functionality of ceramic band heaters is key to selecting the right heating solution for your production line.
By choosing a high-quality ceramic band heater, businesses can improve energy efficiency, reduce operational costs, and increase the longevity of their heating systems. Whether you're working with plastic, food, chemicals, or metals, ceramic band heaters offer a reliable and effective heating solution to meet your needs.
